TK103 Protocol GPS Devices: Key Technical Specifications
Comprehensive Analysis of TK103 Protocol GPS Trackers
Executive Summary
The TK103 communication protocol has become an industry standard for Chinese-manufactured GPS trackers, including brands like Coban, Xexun, and Kingneed. While they share a common communication logic (GPRS/GSM), their hardware capabilities vary significantly—ranging from ultra-light personal trackers to heavy-duty industrial units with 15,000+ mAh batteries.
1. Classification of TK103 Protocol GPS Devices by Utility
To better understand these devices, we categorize them into three main segments:
* Wired Vehicle Trackers (e.g., TK206, TK207, EC-546): These are hardwired to the vehicle’s battery. They support engine immobilization (fuel/power cut) and ACC ignition detection.
* High-Capacity Asset Trackers (e.g., T8800, T15400, Kingneed TK20): These feature massive internal batteries and strong magnets, designed for containers or trailers where external power is unavailable.
* Personal & Portable Trackers (e.g., T12, T16, T18, P168): Small form factor devices focused on elderly, child, or pet tracking, often featuring SOS buttons and two-way voice communication.
2. Comparative Technical Matrix
Technical analysis of hardware capabilities and use cases
| Model Group | Type | Battery / Power | Key Feature | Ideal Use Case |
|---|---|---|---|---|
| EC-546 / TK206 / TK207 | Wired | External (12/24V) | Engine Cut-off / ACC | Fleet & Private Cars |
| TT0024 / T1024 / T2024 | Wired | 800-2000mAh Backup | Rugged Casing | Logistics & Trucks |
| T4400 / T8800 / TK05 | Magnetic | 4.4Ah – 8.8Ah | Strong Magnets | Cargo & Containers |
| T15400 / Kingneed TK20 | High Capacity | 15.4Ah – 20Ah | Up to 1 Year Standby | Long-term Asset Tracking |
| T12 / T16 / T18 / T18H | Portable | 400-1000mAh | SOS Button / Audio | Elderly & Children |

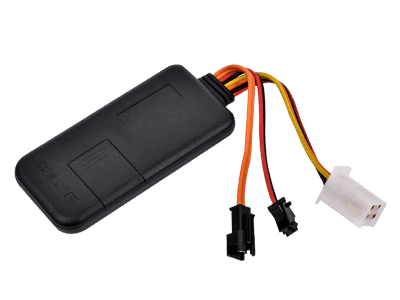

| P168 / P169 / KS168 | Mini | Ultra-small Battery | Stealth Design | Pets & Small Valuables |
| TK10 / TK15 / TK20 | Universal | Variable (5Ah+) | Shock/Light Sensors | Industrial Equipment |
3. Technical Protocol Details
All these models typically communicate via TCP/UDP on ports like 5002 (depending on the server software like Traccar). The data packet structure usually follows the (DeviceID,Command,Data) format.
Key Performance Factors:
* Chipsets: Newer “T” and “TK” series models utilize MTK high-sensitivity chips for better indoor (LBS) positioning when GPS signals are weak.
* Power Management: High-end models (T15400/TK20) use 3D G-sensors to enter “Deep Sleep” when the asset is stationary, reducing battery drain to nearly zero.
* Sensors: While the EC-546 focuses on digital inputs (Ignition), the Kingneed series often includes light sensors to alert if the device is removed from the asset.
——————————
4. Integration Guide (SMS Configuration)
Regardless of the model, the initialization process follows a standard sequence:
1. Begin: begin123456
2. Admin: admin123456 [YourNumber]
3. APN: apn123456 [CarrierAPN]
4. IP/Port: adminip123456 [ServerIP] [Port]
5. Tracking Mode: gprs123456
——————————
Conclusion
For vehicle security, the TK206/207 or EC-546 are the most cost-effective solutions. For maritime or international shipping, the T15400 or Kingneed TK20 are the only viable options due to battery longevity. For personal safety, the T18H is preferred for its enhanced GPS sensitivity and SOS features.
